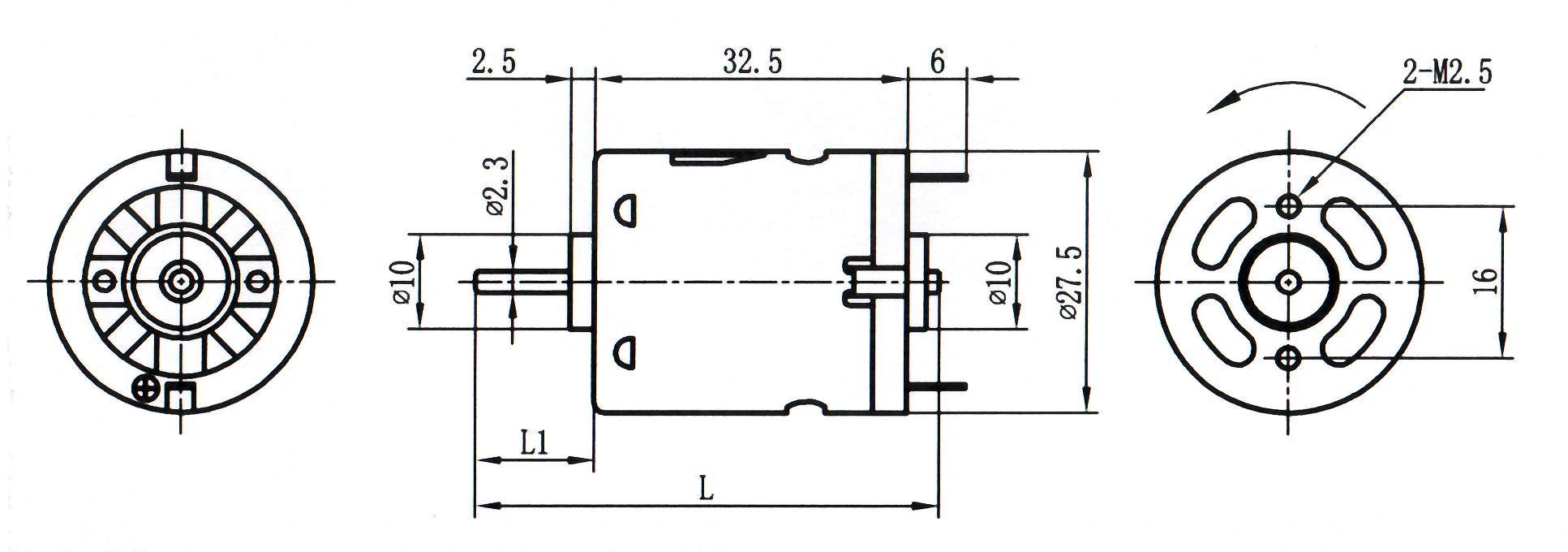

DC motors models RS-360 or RS-365, Carbon brush dc motor, Cylinder, Diameter 27.5mm, length 32.5mm, shaft 2.3mm, fixing screw 2-M2.5mm. Operating voltage: 2.4~40V, At no load Speed 4,000~25,000 r.p.m, Output about 1.5~35W. fit for hair dryer, massager, vibrator, water pump, vending machine, popcorn maker, annunciator, drill & screw driver, egg mixer, etc.
| Model | Voltage | No Load | At Max. Efficiency | Stall Torque | ||||||
| Operating Range(V) | Nominal | Speed | Current | Speed | Current | Torque | Output | Eff | ||
| V | r.p.m | A | r.p.m | A | g.cm | W | % | g.cm | ||
| RS-360S-4528 | 1.5 ~ 6.0 | 2.4 | 11,000 | 1.10 | 8,500 | 2.60 | 42.0 | 3.66 | 58.7 | 156 |
| RS-360S-3548 | 2.4 ~ 9.0 | 9.0 | 25,000 | 0.80 | 20,500 | 3.85 | 88.0 | 18.52 | 53.4 | 500 |
| RS-360S-3165 | 1.2 ~ 6.0 | 3.6 | 8,500 | 0.39 | 6,800 | 1.62 | 50.0 | 3.49 | 59.8 | 260 |
| RS-360S-25110 | 3.0 ~ 15.0 | 6.0 | 8,400 | 0.22 | 6,900 | 1.05 | 55.0 | 3.90 | 61.8 | 320 |
| RS-360S-10500 | 9.0 ~ 30.0 | 24.0 | 7,200 | 0.055 | 5,600 | 0.20 | 46.0 | 2.64 | 55.1 | 220 |
| RS-365S-3133 | 2.4 ~ 9.0 | 4.5 | 11,500 | 0.450 | 9,300 | 1.81 | 50.0 | 4.77 | 58.6 | 240 |
| RS-365S-2840 | 3.0 ~ 12.0 | 12.0 | 24,000 | 0.470 | 19,800 | 2.24 | 75.0 | 15.24 | 56.7 | 430 |
| RS-365S-2172 | 6.0 ~ 24.0 | 20.0 | 22,000 | 0.28 | 18,600 | 1.40 | 100.0 | 19.09 | 68.2 | 365 |
| RS-365S-1980 | 6.0 ~ 24.0 | 24.0 | 24,000 | 0.20 | 20,800 | 1.35 | 95.0 | 20.28 | 62.6 | 500 |
| RS-365S-10225 | 6.0 ~ 36.0 | 24.0 | 8,100 | 0.065 | 6,200 | 0.22 | 43.0 | 2.74 | 51.8 | 180 |
