Typical Application:
Massagers
Toys
Hair Dryer
Motorized Plastic Models
Mini Fans
Can Openers
Water Pump
Mini Cleaners
Automotive Rearview Mirror
Automotive Central Locking System

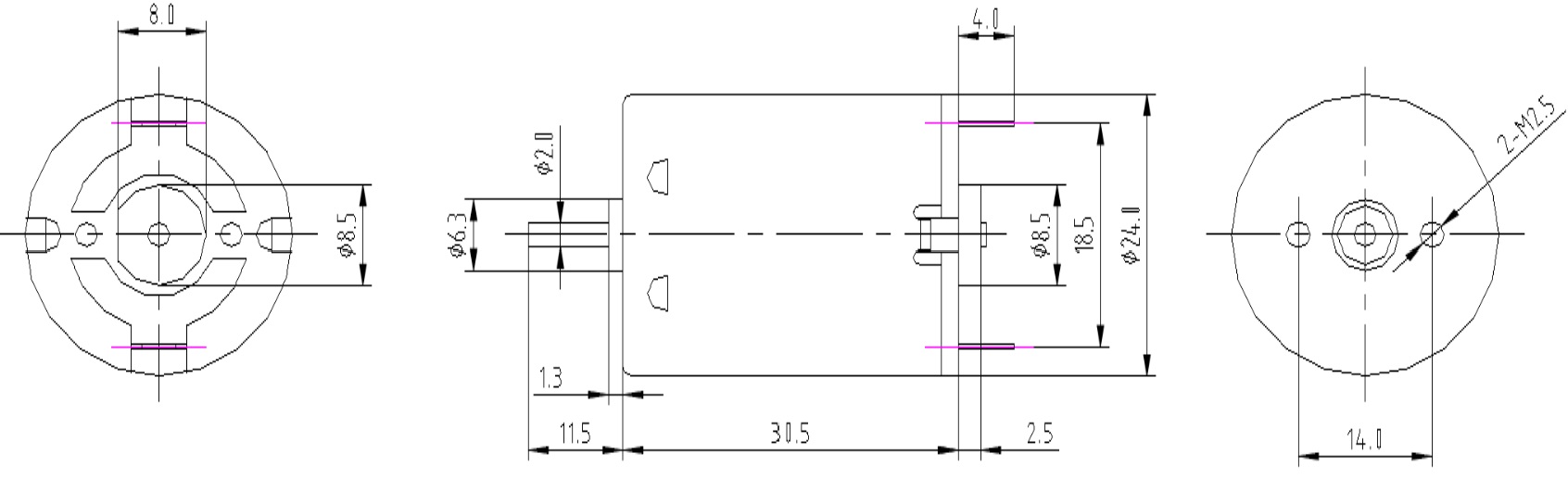

| RS-280（TECHNICAL PARAMETER） | ||||||||||
| Model | Voltage | No Load | At Max. Efficiency | Stall Torque | ||||||
| Operating Range（V） | Nominal | Speed | Current | Speed | Current | Torque | Output | Eff | ||
| V | r.p.m | A | r.p.m | A | g.cm | W | % | g.cm | ||
| RS-280S-3155 | 1.2 ~ 6.0 | 4.5 | 12000 | 0.3 | 10100 | 1.6 | 42 | 4.354288235 | 60.47622549 | 270 |
| RS-280S-2865 | 1.5 ~ 7.2 | 3 | 7000 | 0.2 | 5800 | 0.96 | 28 | 1.666988235 | 57.88153595 | 165 |
| RS-280S-2485 | 3.0 ~ 12.0 | 6 | 10600 | 0.2 | 8850 | 1 | 40 | 3.633705882 | 60.56176471 | 240 |
| RS-280S-21120 | 3.0 ~ 15.0 | 6 | 7800 | 0.15 | 6300 | 0.65 | 35 | 2.263367647 | 58.03506787 | 185 |
| RS-280S-18145 | 3.0 ~ 15.0 | 6 | 7000 | 0.12 | 5650 | 0.5 | 30 | 1.739867647 | 57.99558824 | 155 |
| RS-280S-15180 | 4.5 ~ 18.0 | 12 | 10800 | 0.1 | 8900 | 0.48 | 36 | 3.288811765 | 57.09742647 | 200 |
| RS-280S-12300 | 9.0 ~ 30.0 | 12 | 6400 | 0.05 | 5170 | 0.21 | 28 | 1.485918824 | 58.96503268 | 145 |
| RS-280S-10350 | 9.0 ~ 30.0 | 12 | 5150 | 0.04 | 4050 | 0.15 | 22.5 | 0.935371324 | 51.96507353 | 100 |
| RS-280S-09400 | 9.0 ~ 30.0 | 12 | 4600 | 0.035 | 3590 | 0.11 | 18 | 0.663305294 | 50.25040107 | 85 |
| RS-280S-08500 | 9.0 ~ 30.0 | 12 | 3700 | 0.03 | 2760 | 0.088 | 16.5 | 0.467454706 | 44.26654412 | 65 |
