12v DC Motor
Carbon brush dc motor

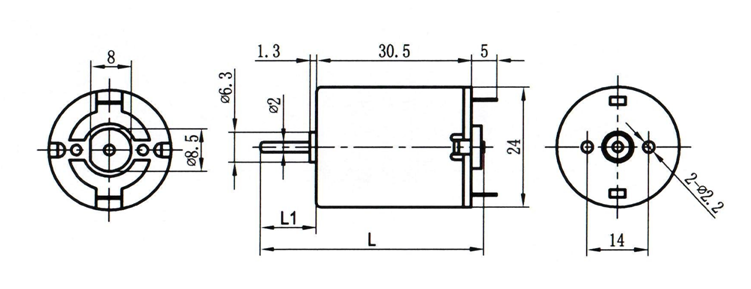

Diameter 24mm, length 30mm, shaft 2mm
Voltage: 2.4~24V
No load Speed 3,000~25,000 rpm
Output about 0.5~10W.
Fit for hair dryer, massager, mini fans, toys, gear head, automotive central locking system, etc.
| Model | Voltage | No Load | At Max. Efficiency | Stall Torque | ||||||
| Operating Range(V) | Nominal | Speed | Current | Speed | Current | Torque | Output | Eff | ||
| V | r.p.m | A | r.p.m | A | g.cm | W | % | g.cm | ||
| RS-280S-3155 | 1.2 ~ 6.0 | 4.5 | 12,000 | 0.30 | 10,100 | 1.60 | 42.0 | 4.35 | 60.5 | 270 |
| RS-280S-2865 | 1.5 ~ 7.2 | 3.0 | 7,000 | 0.20 | 5,800 | 0.96 | 28.0 | 1.67 | 57.9 | 165 |
| RS-280S-2485 | 3.0 ~ 12.0 | 6.0 | 10,600 | 0.20 | 8,850 | 1.00 | 40.0 | 3.63 | 60.6 | 240 |
| RS-280S-21120 | 3.0 ~ 15.0 | 6.0 | 7,800 | 0.15 | 6,300 | 0.65 | 35.0 | 2.26 | 58.0 | 185 |
| RS-280S-18145 | 3.0 ~ 15.0 | 6.0 | 7,000 | 0.12 | 5,650 | 0.50 | 30.0 | 1.74 | 58.0 | 155 |
| RS-280S-15180 | 4.5 ~ 18.0 | 12.0 | 10,800 | 0.10 | 8,900 | 0.48 | 36.0 | 3.29 | 57.1 | 200 |
| RS-280S-12300 | 9.0 ~ 30.0 | 12.0 | 6,400 | 0.05 | 5,170 | 0.21 | 28.0 | 1.49 | 59.0 | 145 |
| RS-280S-10350 | 9.0 ~ 30.0 | 12.0 | 5,150 | 0.04 | 4,050 | 0.15 | 22.5 | 0.94 | 52.0 | 100 |
| RS-280S-09400 | 9.0 ~ 30.0 | 12.0 | 4,600 | 0.035 | 3,590 | 0.11 | 18.0 | 0.66 | 50.3 | 85 |
| RS-280S-08500 | 9.0 ~ 30.0 | 12.0 | 3,700 | 0.03 | 2,760 | 0.09 | 16.5 | 0.47 | 44.3 | 65 |
