Typical Application:
Vacuum Cleaner
Power Tools
Massager
Vending Machine
Printer
Annunciator
Paper Shredder
Drill & Screw Driver
More…

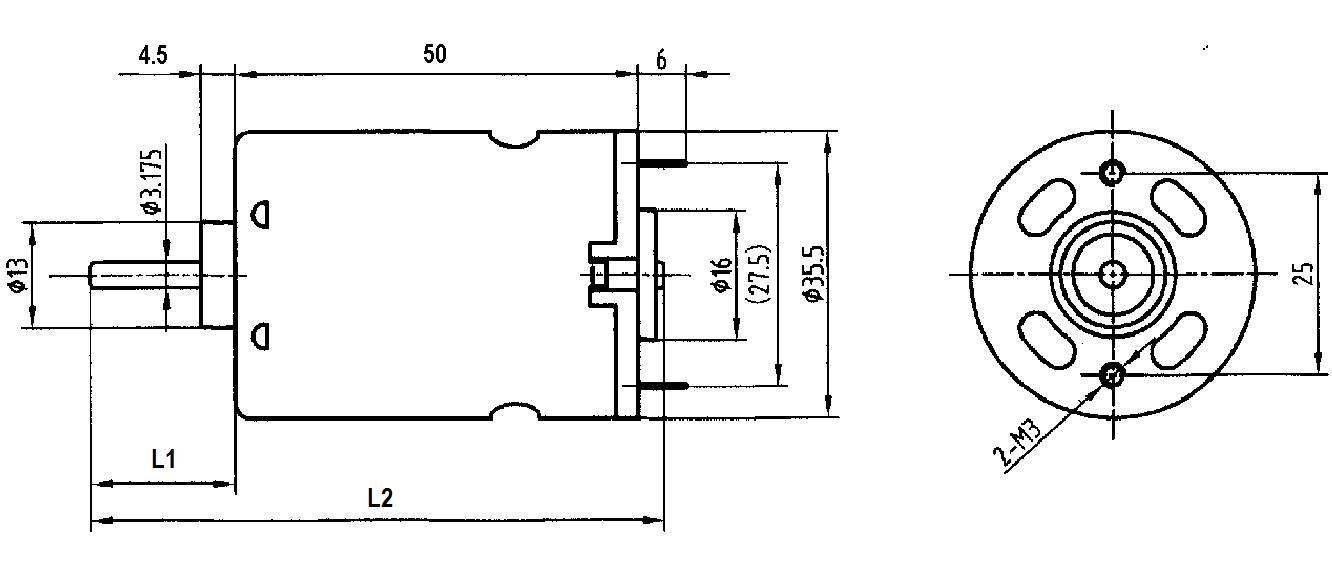

| RS-540/545（TECHNICAL PARAMETER） | ||||||||||
| Model | Voltage | No Load | At Max. Efficiency | Stall Torque | ||||||
| Operating Range（V） | Nominal | Speed | Current | Speed | Current | Torque | Output | Eff | ||
| V | r.p.m | A | r.p.m | A | g.cm | W | % | g.cm | ||
| RS-540S-5045 | 4.5 ~ 12.0 | 12 | 17800 | 0.98 | 15300 | 6.15 | 320 | 50.256 | 68.09756098 | 2400 |
| RS-540S-4565 | 4.5 ~ 18.0 | 12 | 11000 | 0.52 | 9450 | 3.18 | 260 | 25.22038235 | 66.09114872 | 1850 |
| RS-540S-33110 | 6.0 ~ 24.0 | 12 | 6750 | 0.3 | 5700 | 1.6 | 220 | 12.87194118 | 67.04136029 | 1400 |
| RS-540S-30130 | 6.0 ~ 24.0 | 12 | 5700 | 0.25 | 4800 | 1.4 | 185 | 9.115058824 | 54.25630252 | 1200 |
| RS-540S-18270 | 12.0 ~ 30.0 | 12 | 2780 | 0.13 | 2150 | 0.42 | 126 | 2.780708824 | 55.17279412 | 550 |
| RS-545S-5016 | 3.0 ~ 9.0 | 9 | 22500 | 1.5 | 19000 | 8.12 | 262 | 51.09770588 | 68.66583861 | 1680 |
| RS-545S-3060 | 6.0 ~ 30.0 | 30 | 17700 | 0.32 | 15200 | 2 | 275 | 42.90647059 | 71.51078431 | 2000 |
| RS-545S-2870 | 6.0 ~ 30.0 | 9 | 2270 | 0.23 | 1840 | 1 | 150 | 2.833058824 | 31.47843137 | 800 |
| RS-545S-2486 | 9.0 ~ 30.0 | 12 | 4800 | 0.25 | 3800 | 0.99 | 175 | 6.826029412 | 57.45816003 | 850 |
| RS-545S-23100 | 12.0 ~ 30.0 | 12 | 3900 | 0.17 | 3120 | 0.67 | 150 | 4.803882353 | 59.74978051 | 750 |
| RS-545S-17148 | 36-50 | 40 | 9100 | 0.12 | 7500 | 0.62 | 230 | 17.70661765 | 71.3976518 | 1048 |
| RS-545S-21105 | 12-27.4 | 24 | 7400 | 0.25 | 6450 | 0.71 | 170 | 11.25525 | 66.05193662 | 980 |
| RS-540S-19270 | 12-27.4 | 24 | 5400 | 0.18 | 4600 | 0.45 | 150 | 7.082647059 | 65.58006536 | 1142 |
| RS-540S-27140 | 10.8-14.4 | 12 | 5400 | 0.28 | 4500 | 0.9 | 150 | 6.928676471 | 64.15441176 | 1114 |
| RS-545S-15192 | 12-27.4 | 24 | 3400 | 0.085 | 2800 | 0.35 | 160 | 4.598588235 | 54.74509804 | 858 |
| RS-545S-2198 | 10.8-14.4 | 12 | 3400 | 0.165 | 2750 | 0.58 | 160 | 4.516470588 | 64.8918188 | 815 |
| RS-545S-2390 | 12-27.4 | 24 | 8100 | 0.2 | 7000 | 1.1 | 230 | 16.52617647 | 62.5991533 | 1430 |
| RS-545S-2396 | 9.6-24 | 14 | 4500 | 0.19 | 3800 | 0.65 | 150 | 5.850882353 | 64.29541047 | 980 |
| RS-545S-3156 | 3.6-12 | 7.4 | 4300 | 0.26 | 3650 | 0.75 | 100 | 3.746617647 | 67.50662427 | 730 |
| RS-540S-7221 | 3.6-9.6 | 7.2 | 20000 | 2.5 | 16500 | 9.12 | 251 | 42.51127941 | 64.74061801 | 1408 |
| RS-540S-7417 | 3.6-9.6 | 6 | 20000 | 2.9 | 16500 | 8.8 | 185 | 31.33301471 | 59.34283088 | 850 |
| RS-540S-8013 | 3.6-7.2 | 4.8 | 20000 | 3.5 | 16000 | 11.8 | 197 | 32.35435294 | 57.12279827 | 970 |
